AFS-GL, GL Series Level Activation Sensor

AFS-GL
GL Series Level Sensor, With Supplement Water  Controls And Air-Gap Backflow Preventer

Use with GL Series Single Zone or Multi-Zone greywater irrigation systems

UL Approved Rain-Tite Enclosures

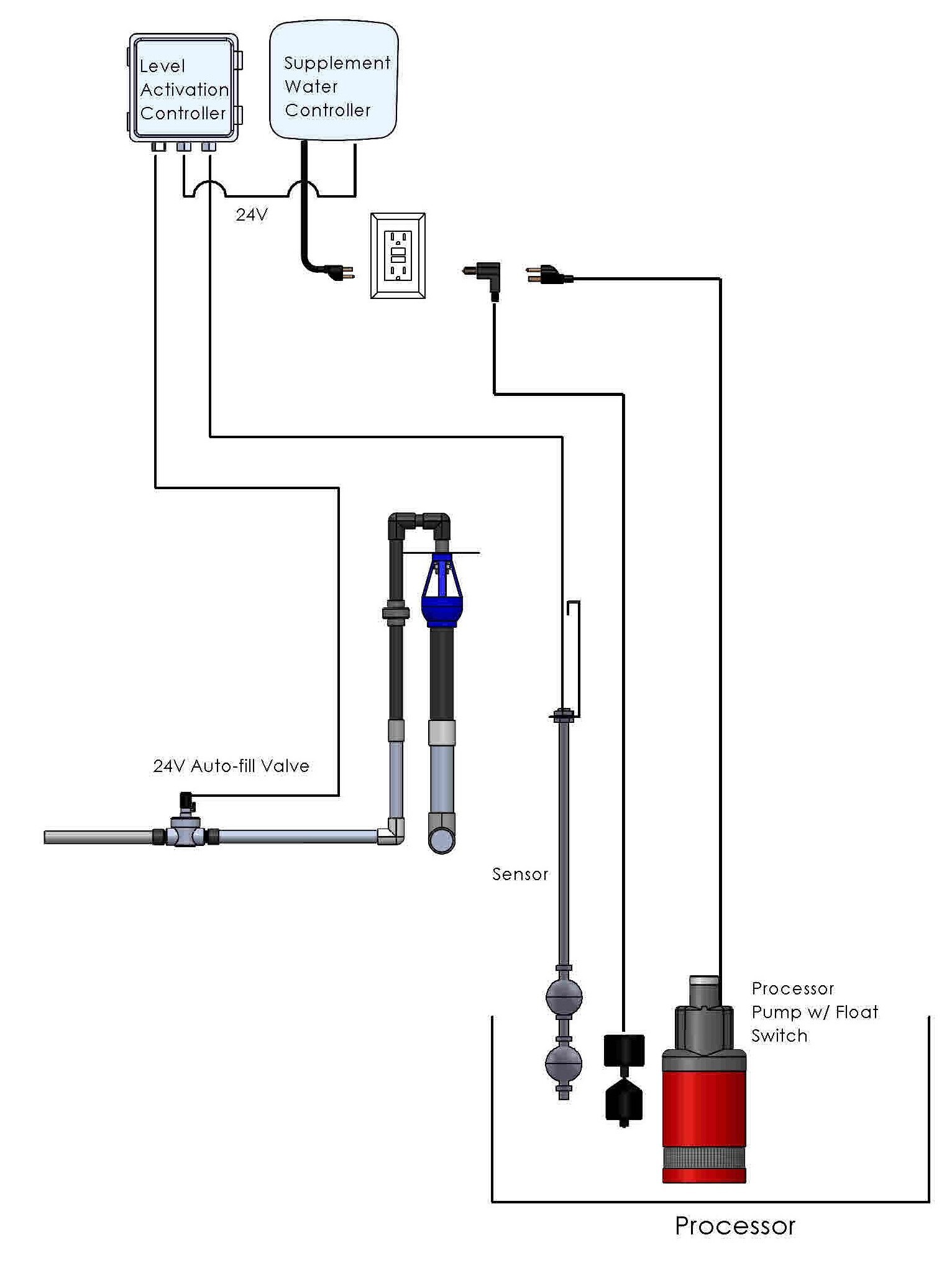

An Upper and Lower Float Switch adds water at a low water level and turns it off when water reaches the upper float.

Includes:

Supplement Water Controller

This controller provides scheduled supplement water times and activates the level actuator controller according to a set time(s) during the day.

• Indoor or outdoor
• 3 individual programs, A,B,C using station #1 (Supplement Valve).
• 4 independent start times per program
• Operates any or all days oof the week as needed

Level Actuator Controller

Operates an upper and lower float switch to add water on demand when activated by the supplement water controller.

• Indoor or outdoor

Sensor w/ Mounting Bracket

24V Auto-Fill Valve

20 ft. Auto-Fill Cable

20 ft Sensor Cable

6 ft Power Cable

AF-AG2 Air Gap Assembly

Connection Pipe And Fittings To The Processor

If there is not enough greywater produced to supply the water needed for a greywater irrigation system domestic water can be added to the grey water irrigation system with the AFS-GL.  For example, this could happen for a residential greywater irrigation system.  If the owners go away on vacation and no one is living in the house no greywater will be produced and the plants that are relying on the greywater irrigation system will not be watered.
